FCJ system couplers

Short Description:

1.Hebei Yida Anti Impact Rebar Coupling system is divided into the following types: (1)ACJ Standard Coupler 2.1 (2)BCJ Transition Coupler 2.2 (3)FCJ Positive and negative Thread Coupler 2.3 (4)KCJ Adjustable Coupler 2.4 (5)MCJ Anchorage Terminator Coupler 2.5 2. Introduction Hebei Yida Anti Impact Rebar Coupling system is a mechanical rebar splicing system, be made of high quality alloy steel. It has already passed the High Speed Tensile test of Anti instant impact by Germany Berli...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    1.Hebei Yida Anti Impact Rebar Coupling system is divided into the following types

    (1)ACJ Standard Coupler 2.1

    (2)BCJ Transition Coupler 2.2

    (3)FCJ Positive and negative Thread Coupler 2.3

    (4)KCJ Adjustable Coupler 2.4

    (5)MCJ Anchorage Terminator Coupler 2.5

    2. Introduction

    Hebei Yida Anti Impact Rebar Coupling system is a mechanical rebar splicing system, be made of high quality alloy steel. It has already passed the High Speed Tensile test of Anti instant impact by Germany Berlin BAM Laboratory. It has been widely applied at the sites where required high level of resistance to impact. The coupler sleeve will be perfect connected with rebar by cold swaged deformation in the application, and dual couplers will be connected by a high strength bolt.

    Special Advantages:

    (1)Each rebar is connected by cold swaged with a coupling, It was processed by large-tonnage hydraulic machine and unique split mould to ensure high quality and reliable radial deformation swage. Connection of rebar with coupler after swaged as shown in Figure 1.

     9

    Figure 1

    (2)Rebar sleeve bond press is done prior to site connection saving precious site time.

    (3)The two sleeves are connected through a high-strength bolt, quality ensured.

    (4)Installation on site is easy and fast, even in dense cages. No X-ray check is needed and installation can be done in any weather conditions.

    (5)No thread cutting, no need heat or pre-heat on rebar, hence the rebar retains its original characteristics after splice.

    (6)The Yida ACJ rebar coupling system stands complex or full tension as well as full compression state.

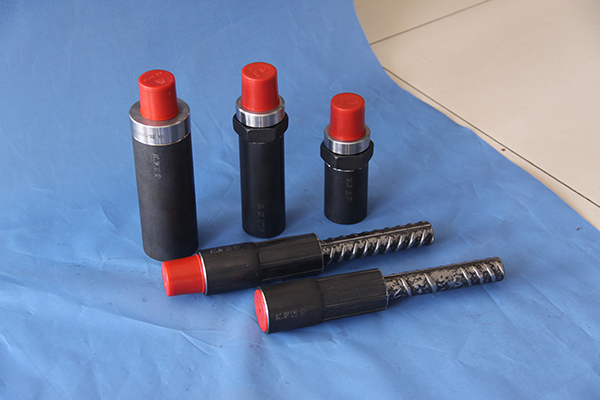

    2.3 FCJ Positive and Negative Thread coupler

    FCJ Positive and Negative thread coupler is made up by one standard sleeve, one negative thread sleeve and one transition bolt(as shown in Figure 8),used for connection between two pieces of different diameter rebar. It is suitable for long rebar connections, or bended rebars where the rotation of the rebar is difficult or even impossible. Only one of the rebars must be movable on its axis. Through turning the bolt, two pieces of rebar can be loosen or tighten at same time.

    10

    Figure 8

    Characteristic:FCJ Coupler can make two different diameter rebar connecting more efficient even the rotation of the rebar is difficult or even impossible

    Application Guide:

    Proper installation is very important to ensure the design load will be reached in the application. Yida strongly recommends that the installation and site quality check be done according to the required guidelines and dimensions.

    Rebar And sleeves swaged connection

    Using hydraulic machine and unique split mould to swage sleeve deformation, formed the seamless connection with rebar and the swage length is to meet the standard swage length. Shorter swage length reduces the bond, while longer swage length may shorten the engagement length of the thread.

    Site Installation Method

    Step 1:Make one sleeve swaged with rebar, another sleeve swaged with rebar, touch to the positive & negative bolt, As shown in Figure 9.

     11

    Figure 9

    Step 2:When screw the bolt, make the two sides sleeve keep touch with bolt, can turn both two sides sleeve into the bolt, till the sleeves touch into the bolt convex plate. As shown in Figure 10.

     12

    Figure 10

    Step 3:With help of two pipe wrench,tighten the connection by turning both rebar / couplers in opposite direction at the same time.
