KCJ Adjustable Coupler

Short Description:

1.Hebei Yida Anti Impact Rebar Coupling system is divided into the following types: (1)ACJ Standard Coupler 2.1 (2)BCJ Transition Coupler 2.2 (3)FCJ Positive and negative Thread Coupler 2.3 (4)KCJ Adjustable Coupler 2.4 (5)MCJ Anchorage Terminator Coupler 2.5 2. Introduction Hebei Yida Anti Impact Rebar Coupling system is a mechanical rebar splicing system, be made of high quality alloy steel. It has already passed the High Speed Tensile test of Anti instant impact by Germany Berli...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    1.Hebei Yida Anti Impact Rebar Coupling system is divided into the following types

    (1)ACJ Standard Coupler 2.1

    (2)BCJ Transition Coupler 2.2

    (3)FCJ Positive and negative Thread Coupler 2.3

    (4)KCJ Adjustable Coupler 2.4

    (5)MCJ Anchorage Terminator Coupler 2.5

    2. Introduction

    Hebei Yida Anti Impact Rebar Coupling system is a mechanical rebar splicing system, be made of high quality alloy steel. It has already passed the High Speed Tensile test of Anti instant impact by Germany Berlin BAM Laboratory. It has been widely applied at the sites where required high level of resistance to impact. The coupler sleeve will be perfect connected with rebar by cold swaged deformation in the application, and dual couplers will be connected by a high strength bolt.

    Special Advantages:

    (1)Each rebar is connected by cold swaged with a coupling, It was processed by large-tonnage hydraulic machine and unique split mould to ensure high quality and reliable radial deformation swage. Connection of rebar with coupler after swaged as shown in Figure 1.

     13


    Figure 1

    (2)Rebar sleeve bond press is done prior to site connection saving precious site time.

    (3)The two sleeves are connected through a high-strength bolt, quality ensured.

    (4)Installation on site is easy and fast, even in dense cages. No X-ray check is needed and installation can be done in any weather conditions.

    (5)No thread cutting, no need heat or pre-heat on rebar, hence the rebar retains its original characteristics after splice.

    (6)The Yida ACJ rebar coupling system stands complex or full tension as well as full compression state.

    2.4 KCJ Adjustable Coupler

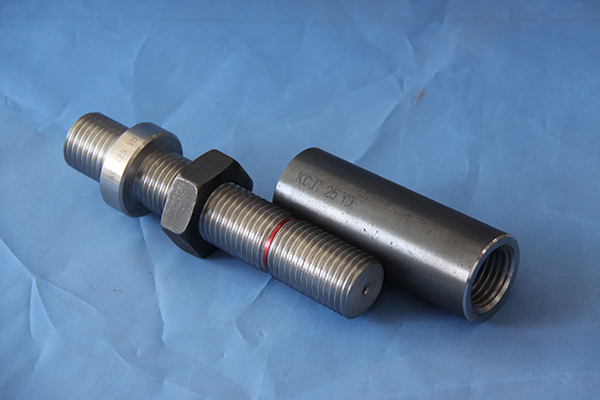

    KCJ Adjustable coupler is made up by two standard sleeves, one full thread sleeve, one standard bolt, one lengthened bolt and two fastening nuts(as shown in Figure 11),used for connecting between two pieces of different diameter rebar. It is suitable for nonconventional applications, at the reinforcing cage or both two pieces of rebars where the rotation of the rebar is impossible.

     k14

    Figure 11

    Characteristic:KCJ Adjustable coupler use the standard sleeves, full thread sleeve, standard bolt, lengthened bolt and fastening nut, it can make the two pieces of rebars where the rotation of the rebar is impossible to be connected via adding the fastening nut.

    Rebar And sleeves swaged connection

    Using hydraulic machine and unique split mould to swage sleeve deformation, formed the seamless connection with rebar and the swage length is to meet the standard swage length. Shorter swage length reduces the bond, while longer swage length may shorten the engagement length of the thread.

    Site Installation Method

    Step 1: Screw the standard bolt into female coupler swaged with rebar, till unable to screw continually. As shown in Figure 12.

     k15

    Figure 12

    Step 2: Screw the full thread sleeve into lengthened bolt, till one end flush and abreast. Make the two fastening nuts keep touch with lengthened bolt and full thread sleeve. As shown in Figure 13.

     k16

    Figure 13

    Step 3:Turn the full thread sleeve into the standard bolt in opposite direction (shown in Figure 12), till the full thread sleeve touch with the standard sleeve,

    With help of two pipe wrench, tighten the connection by turning both two sleeves in opposite direction at the same time. As shown in Figure 14.

     k17

    Figure 14

    Step 4:Turn the lengthened bolt into the other side standard bolt till the marked section in opposite direction, rotate the fastening nuts on both sides and firm lock the nuts. As shown in Figure 15.

     k18

    Figure 15
